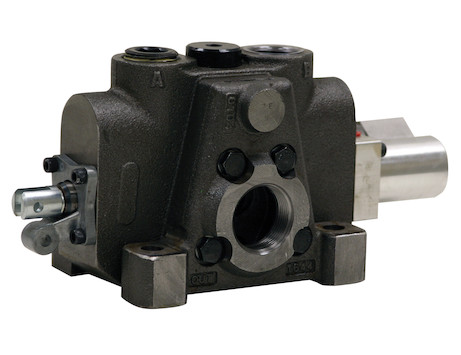

VALVE HYD DUMP 3 POSITON AIR SHIFT

Product ID: HV25

Selected accessories will also be added to cart
Main Relief Setting 2000 PSI
Maximum Pressure 3000 PSI
Power Beyond (Y/N) NoPort
Relief (Y/N) Yes
Spool Action 1 Power Up/Gravity Down - 1 Port Relief
Maximum Flow Rate 35 GPM
Work Port Size 1 NPT
Inlet Port Size 1 NPT
Outlet Port Size 1 1/4 NPT
Port Relief Dump 2000 PSI
Built tough for heavy-duty dump truck operations.
Air-shifted, with an option for manual (handle) shifting.
Sturdy cast iron construction.
Allows 35 GPM flow.
Relief valve can handle up to 2000 PSI .
Applications that require critical load holding installer must use P.O. (Pilot Operated) checks or counter balance valves as well.
