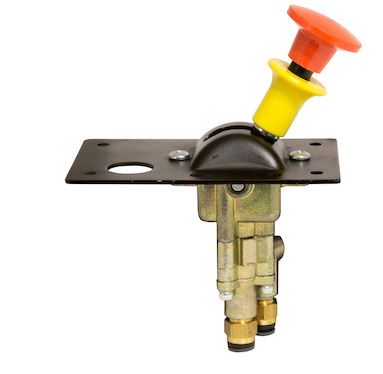

PTO AIR VALVE

Valve Actuation Manual Lever
Valve Action On/Off
Valve Primary Application: Engaging PTO
Port: Type Brass Push Lock Fittings


Activation collar helps prevent accidental operation.
Many applications including PTO and Hoist can be controlled through the flexible design.

TRUCK AIR VALVE

PORTS 1/8" FNPT (3)

Depth (In.) 1-3/8 "
Width (In.) 13/16"
Height (In.) 4 "

Air valve has convenient dashboard or console mounting.
It includes tailgate control face plate and is ideal for operating double acting cylinders.

4-Way, 2-Position Air Valve is ideal for operating double acting cylinders because it controls the air flow required for precise operation in many air cylinder applications. The air valve mounts in the dashboard or a console and includes a tailgate control face plate.

AIR VALVE 4-WAY 3 POSITION

PORTS 1/4" FNPT (3)

APPLICATION TRUCK TAILGATE VALVE

3-Position Air Valve controls the air flow required for precise operation in many air cylinder applications. It has a detented spool to allow for adjusting linkage without shutting off air pressure. The center position blocks air at valve while opening both cylinder ports to atmosphere.

Depth (In.) 1-5/16"
Width (In.) 1 "
Height (In.) 6-1/8"

AIR TANK DRAIN VALVE WITH 4FT CABLE 1/4" MALE NPT

UNIVERSAL AIR TOGGLE VALVE

Toggle air valve comes with three 1/8 in. NPT Ports.
Valve is rated for uses up to 174 PSI.
Includes "on/off" face plate for operating use.

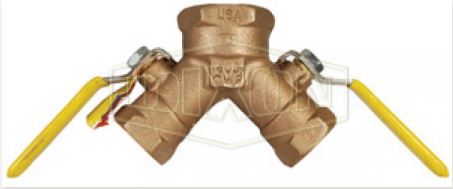

BRASS DUAL Y VALVE

PORTS 1-1/4" FNPT MIDDLE (2) 3/4" FNPT
PRESSURE RATING 600PSI

IDEAL FOR AIR COMPRESSORS

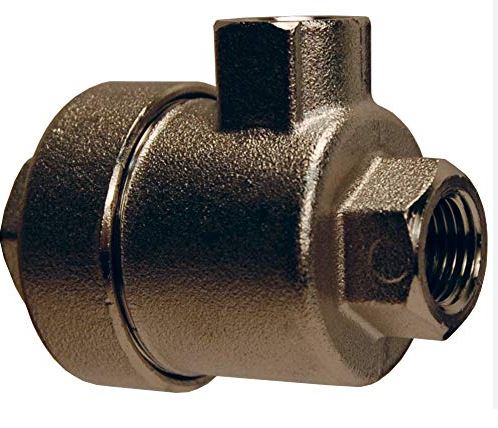

LEGRIS QUICK EXHAUST VALVE

PORTS 1/4" FNPT

USED ON WATER TRUCK SPRAY HEADS

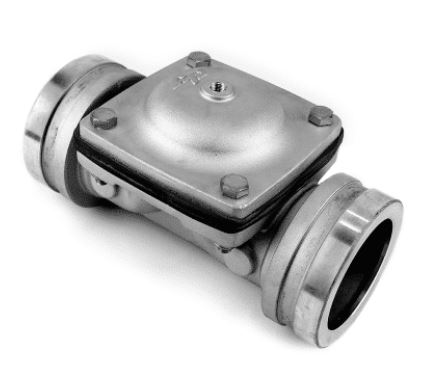

WATER TRUCK AIR DIAPHRAGM VALVE 3" GROOVED ENDS

1/4" FNPT PORT FOR AIR FITTING

3" Air-to-Close Grooved Diaphragm Valve is used for controlling water flow to Deflector, Side Spray and other style spray heads. Aluminum construction and thick diaphragms ensure a lightweight and durable valve for your water distribution needs.

This valve requires a 1/4" air hose fitting to operate (not included).

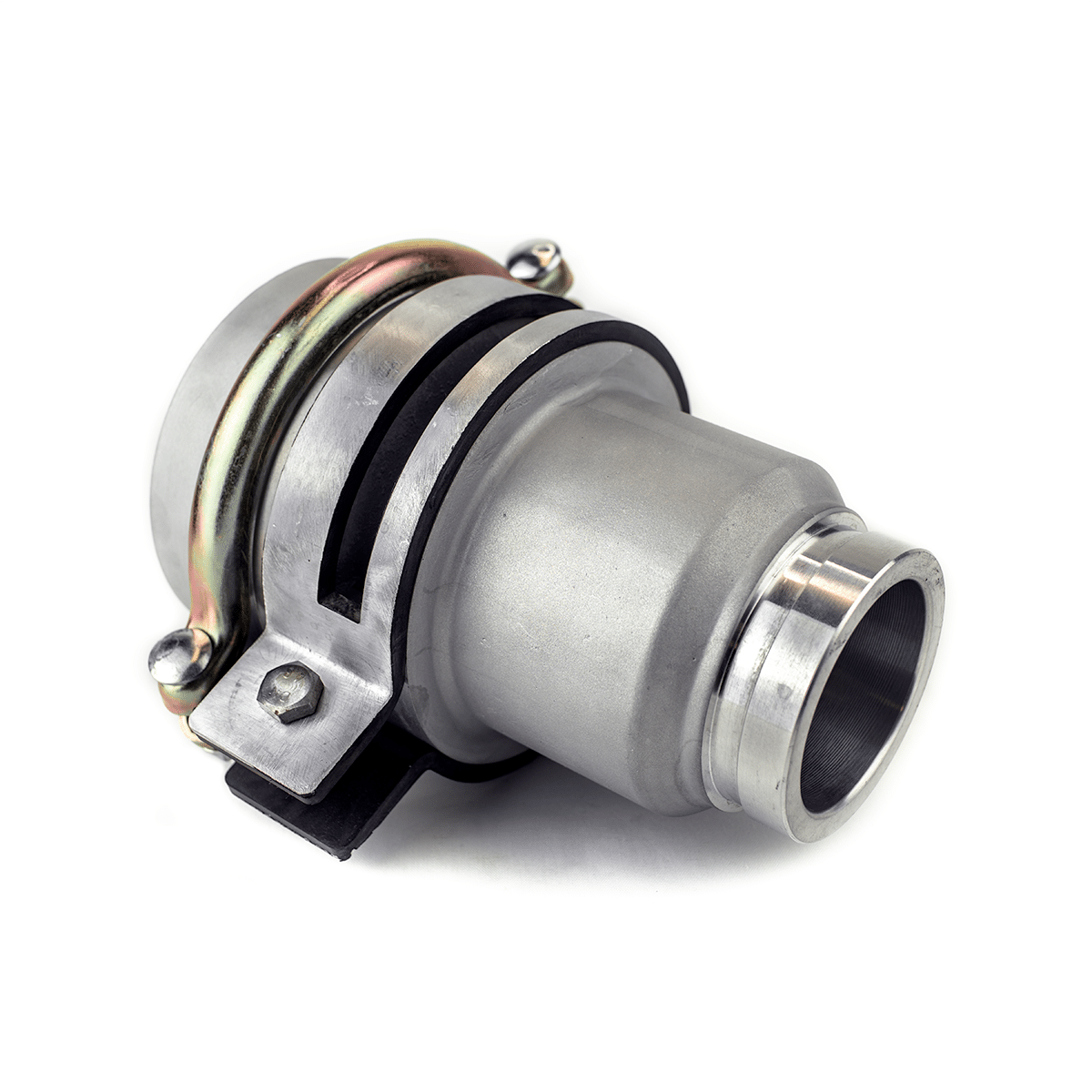

WATER TRUCK SPRAY HEAD 3" GROOVE CONNECTION

WITH 1/4" FNPT SINGLE AIR CONNECTION

3" Grooved Spray Head Valve. This is a NORMALLY CLOSED spray head valve that will not leak with loss of air pressure. It features an adjustable outlet allowing full control of spray pattern and volume. The convenient grooved inlet mounting provides flexibility in positioning to achieve desired spray coverage
