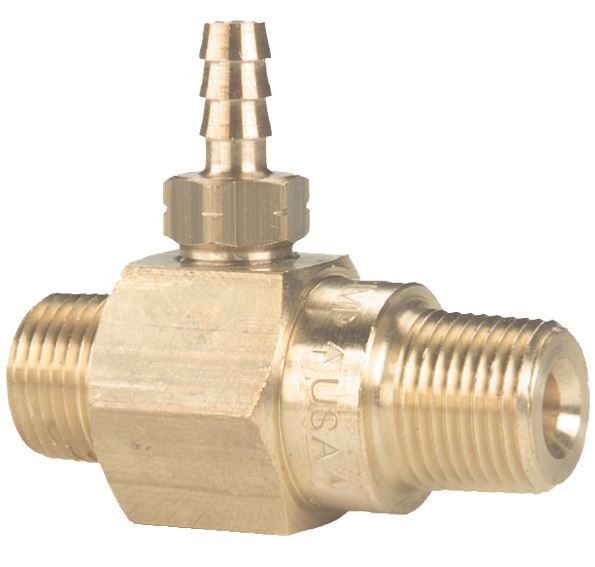

PRESSURE WASHER CHEMICAL INJECTOR
Fixed Chemical Injector, High Draw, Chemical Draw Up To 20%

SPECIFICATIONS
Orifice: 2.1 mm

GPM: 3.0 to 5.0

Rated PSI: 4500

Inlet: 3/8" NPT-M

Outlet: 3/8" NPT-M

Temperature: 190° F

Hose Barb: 1/4"

PRESSURE WASHING CHEMICAL INJECTOR

Fixed Chemical Injector, High Draw, Chemical Draw Up To 20%

SPECIFICATIONS
Orifice: 2.3 mm

GPM: 5.0 to 8.0

Rated PSI: 4500

Inlet: 3/8" NPT-M

Outlet: 3/8" NPT-M

Temperature: 190° F

Hose Barb: 1/4"

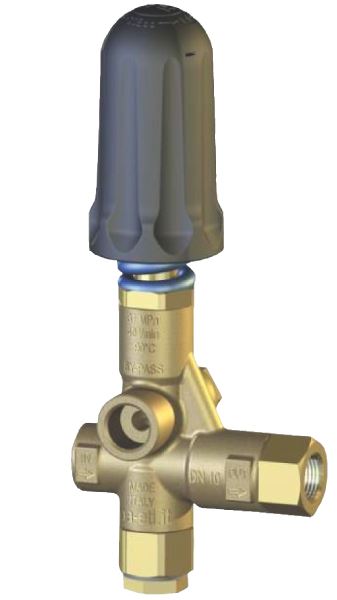

SPECIFICATIONS

GPM: 10.5

Rated PSI: 4050

Max PSI: 4500

Inlet: (2) 3/8" NPT-F

Outlet: 3/8" NPT_F

Bypass: (2) 3/8" NPT-F

Temperature: 195° F

SPECIFICATIONS

GPM: 21.0

Rated PSI: 4050

Max PSI: 4500

Inlet: (2) 1/2" NPT-F

Outlet: 1/2" NPT-F

Bypass: (2) 1/2" NPT-F

Temperature: 200° F
