LYNX 5:1 HD OIL PUMP

Air inlet1/4” NPT(F)
Fluid inlet1” NPT(F)
Fluid outlet3/4” NPT(F)

GRACO 203876 OIL PUMP 5:1

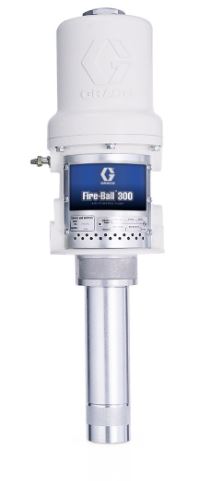

Fire-Ball® 300 Series 5:1 Universal Size Oil Pump

AIR INLET: 3/8" FNPT
PUMP INLET: 1-1/2" FNPT
PUMP OUTLET: 1/2" FNPT

GRACO HUSKY 515 CHEMICAL DIAPHRAGM PUMP 1/2"

AIR INLET: 1/4" FNPT
AIR EXHAUST: 3/8" FNPT
FLUID INLET: 1/2" FNPT
FLUID OUTLET: 1/2" FNPT CENTER / 3/4" FNPT SIDE
FLUID INLET: 1/2" FNPT CENTER / 3/4" FNPT SIDE
MAXIMUM FLOW RATE (GPM): 15

BALL MATERIAL: PTFE
CENTER SECTION MATERIAL: Polypropylene
DIAPHRAGM MATERIAL: PTFE/EPDM 2-Piece

COMPATIBLE MATERIAL: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

GRACO HUSKY 716 DIAPHRAGM PUMP 3/4"

AIR INLET SIZE: 1/4" FNPT
AIR EXHAUST PORT: 3/8" FNPT
FLUID INLET: 3/4" FNPT
FLUID OUTLET: 3/4" FNPT

MAXIMUM FLOW RATE (GPM): 16
MATERIAL: Aluminum
BALL MATERIAL: Buna-N
COMPATIBLE MATERIAL: Oil, Water, Antifreeze, Windshield Washer Fluid
DIAPHRAGM MATERIAL: Buna-N

GRACO 647016 1050 1" DIAPHRAGM PUMP

AIR INLET: 1/2" FNPT
AIR EXHAUST PORT: 3/4" FNPT
FLUID INLET: 1" FNPT
FLUID OUTLET: 1" FNPT
MAXIMUM FLOW RATE (GPM): 50
MAXIMUM FLUID PRESSURE (PSI): 100
MAXIMUM AIR CONSUMPTION (SCFM): 25
MAXIMUM AIR PRESSURE (PSI): 100


BALL MATERIAL: Acetal
CENTER SECTION MATERIAL: Aluminum
COMPATIBLE MATERIAL: Water, Antifreeze, Fuel
DIAPHRAGM MATERIAL: TPE (Hytrel)
SEAT MATERIAL: TPE (Hytrel)

GRACO 2150 AL DIAPHRAGM PUMP 2"

AIR INLET: 1/2" FNPT
FLUID INLET: 2" FNPT
FLUID OUTLET: 2" FNPT
MAXIMUM FLOW RATE (GPM): 150
MAXIMUM FLUID PRESSURE (PSI): 120

BALL MATERIAL: Acetal
DIAPHRAGM MATERIAL: TPE (Hytrel)
FLUID SECTION MATERIAL: Aluminum
MAXIMUM AIR CONSUMPTION (SCFM): 175
MAXIMUM AIR PRESSURE (PSI): 120

COMPATIBLE MATERIAL: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer

GRACO OIL BASIC PUMP PACKAGE

INCLUDES
GRACO 24G576 3:1 OIL PUMP
GRACO HEM004 1/2" X 50FT OIL REEL WITH HOSE
GRACO 24V037 METERED OIL CONTROL HANDLE

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.

Specifications:

Delivery Rate: 1-gallon per 9 strokes; 1/2 quart per stroke
Max Fluid Viscosity: 40 wt.
Non-Drip Tip: Yes
Seals: Buna N

OIL HAND PUMP FOR 5 GALLON BUCKET WITH HOSE

Features:

Versatile Design: Portable pump will fit 5-gallon pails of oils, ATF, and gear lube.
Professional Grade Construction: Powder coated pail cover and all steel pump allows for longevity through the most demanding usage.
Efficient Delivery: Delivers at a rate of 1-Gallon per 55 strokes and ensures maximum fluid delivery.
For Use with Various Fluid Types: Can be used for transferring heavier oils such as transmission and differential fluids.
Designed with Safety in Mind: 4-Foot Delivery hose with curved spout keeps hose in place which reduces the likelihood of spills that can create slip hazards.
