DONALDSON P550388 10 MICRON HYDRAULIC FILTER

Outer Diameter 4.86 inch (123.5 mm)
Thread Size 1 1/2-16 UN
Length 7.19 inch (182.7 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.72 inch (120 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Style Spin-On
Series W023, SP50/60, SP80/90, SP100/120
Media Type Cellulose

DONALDSON P551551 HYDRAULIC FILTER SPIN-ON

10 MICRON

Outer Diameter 3.66 inch (93 mm)
Thread Size 1-12 UN
Length 5.35 inch (136 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Style Spin-On
Series SP15/25
Media Type Cellulose

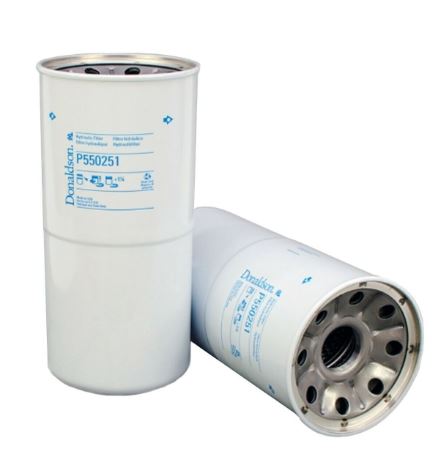

DONALDSON P550251 HYDRAULIC FILTER 10 MICRON

Outer Diameter 5.04 inch (128 mm)
Thread Size 1 1/2-16 UN
Length 10.66 inch (270.8 mm)

DONALDSON P550275 HYDRAULIC FILTER

Mesh Rating 150 micron
Outer Diameter 5.04 inch (128 mm)
Thread Size 1 1/2-16 UN
Length 6.66 inch (169.2 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 2 150 micron
Style Spin-On

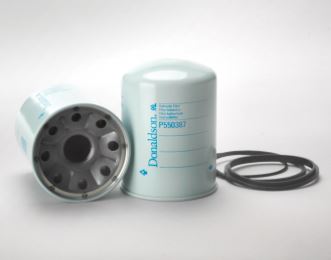

DONALDSON P550387 25 MICRON

Outer Diameter 4.86 inch (123.5 mm)
Thread Size 1 1/2-16 UN
Length 6.66 inch (169.2 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 2 17 micron
Efficiency Beta 1000 40 micron
Style Spin-On
Series W023, SP50/60, SP80/90, SP100/120
Media Type Cellulose

DONALDSON P551553 HYDRAULIC FILTER 25 MICRON

Outer Diameter 3.66 inch (93 mm)
Thread Size 1-12 UN
Length 5.35 inch (136 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency Beta 2 17 micron
Efficiency Beta 200 32 micron
Style Spin-On
Series SP15/25
Media Type Cellulose
