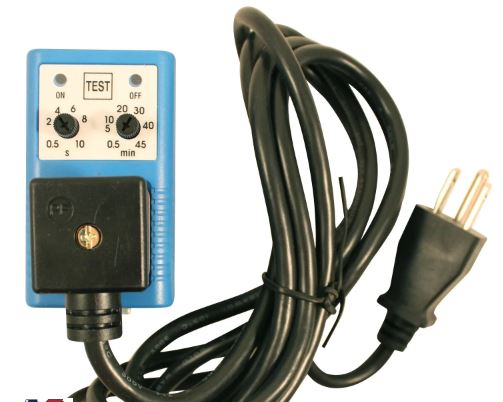

110V 1/4" FEMALE NPT TANK DRAIN VALVE

This compressor tank drain is electronically adjustable to drain compressor tank automatically in order for it to deliver dry air. The two 2 way direct acting 1/4" FNPT valves are made of forged brass and have a manual test switch. Mountable in any position, this tank drain has a 6' 1/2" power cord and offers voltage of 115 volts / 1 phase / 60 Hz. Offers a working pressure range of 0 to 230 PSI.

• Working pressure range of 0 to 230 pounds per square inch
•Temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit
•Discharge interval adjustable from .5 to 45 minutes
•Discharge duration adjustable from .5 to 10 seconds

110V 1/2" FEMALE NPT TANK DRAIN VALVE

This compressor tank drain is electronically adjustable to drain compressor tank automatically in order for it to deliver dry air. The two 2 way direct acting 1/4" FNPT valves are made of forged brass and have a manual test switch. Mountable in any position, this tank drain has a 6' 1/2" power cord and offers voltage of 115 volts / 1 phase / 60 Hz. Offers a working pressure range of 0 to 230 PSI.

• Working pressure range of 0 to 230 pounds per square inch
•Temperature range of 40 degrees Fahrenheit to 140 degrees Fahrenheit
•Discharge interval adjustable from .5 to 45 minutes
•Discharge duration adjustable from .5 to 10 seconds

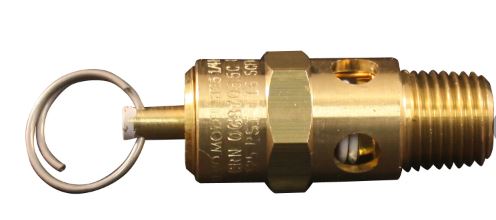

TANK POP OFF VALVE 1/4" MALE NPT

1/4" MNPT ASME Safety Valve, 125 PSI Pop off Pressure

• Bubble tight to 10% of set pop off pressure
• 1/4" Male national pipe thread
• 120 standard cubic feet per minute
• Pop off pressure 125 pounds per square inch

TANK POP OFF VALVE 1/4" MALE NPT

1/4" MNPT ASME Safety Valve, 150 PSI Pop off Pressure

• Bubble tight to 10% of set pop off pressure
• 1/4" Male national pipe thread
• 120 standard cubic feet per minute
• Pop off pressure 150 pounds per square inch
