/PRODUCTS/FUEL EQUIPMENT/TANK & TANK PARTS/TANK FUEL 95GAL L-SHAPED DOT
Click Image to Expand

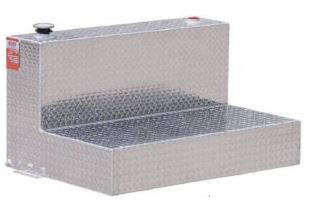

TANK FUEL 95GAL L-SHAPED DOT

Product ID: TTL95

Selected accessories will also be added to cart
2” for cap height
· Special Permit issued by the US Department of Transportation
· Legal for gas, diesel, methanol, kerosene, aviation fuel and other liquids
· Commercial grade lockable vent/prevent filler cap
· Fully baffled to reduce movement of contents
· Two-2” npt reinforced bungs for superior strength
· 3/8” npt drain
· Hold down brackets
· Pressure and leak detection test
· Clean and free of debris inside and out

Our L-shape Refueling Tanks were designed to be used with a crossover style toolbox or chest box. The bottom of the L-shape fits under most standard toolboxes. The fuel tank can also be installed in reverse so the fuel tank can be removed without removal of your toolbox. The Two- 2” bungs allow for reversing the fuel fill cap and fuel transfer pump to the side you prefer best.



Important Notes:

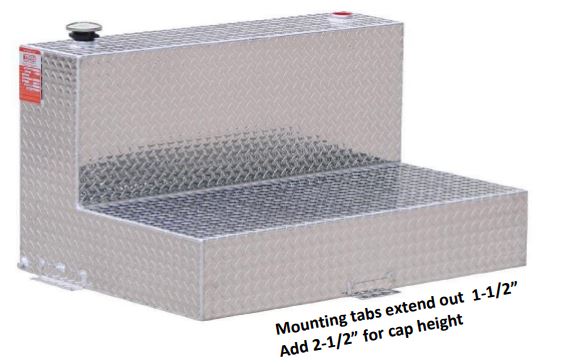

Mounting tabs extend out 1-1/2"
Add 2-12" for cap height
