GRACO 203876 OIL PUMP 5:1
Fire-Ball® 300 Series 5:1 Universal Size Oil Pump

AIR INLET: 3/8" FNPT
PUMP INLET: 1-1/2" FNPT
PUMP OUTLET: 1/2" FNPT

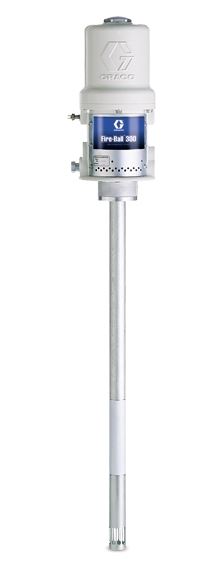

GRACO 239887 GREASE PUMP FOR #120 DRUM

AIR INLET: 3/8" FNPT
GREASE OUTLET: 1/4" FNPT
PUMP RATIO: 50:1
DRUM SIZE: #120 DRUM

REPAIR KIT #241623 LOWER
REPAIR KIT # 238286 AIR MOTOR

Parts included in Kit 206728
‡ Parts included in Kit 222559
† Parts included in Kit 241623

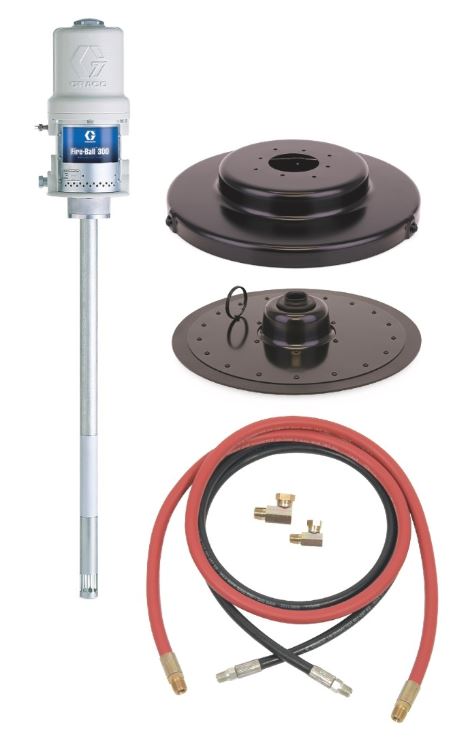

GRACO 225014 GREASE PUMP KIT FOR #120 DRUM
Fire-Ball® 300 Series 50:1 120 lb

AIR INLET: 3/8" FNPT
PUMP OUTLET: 1/4" FNPT
PUMP RATIO: 50:1
INCLUDES: PUMP, LID & FOLLOWER

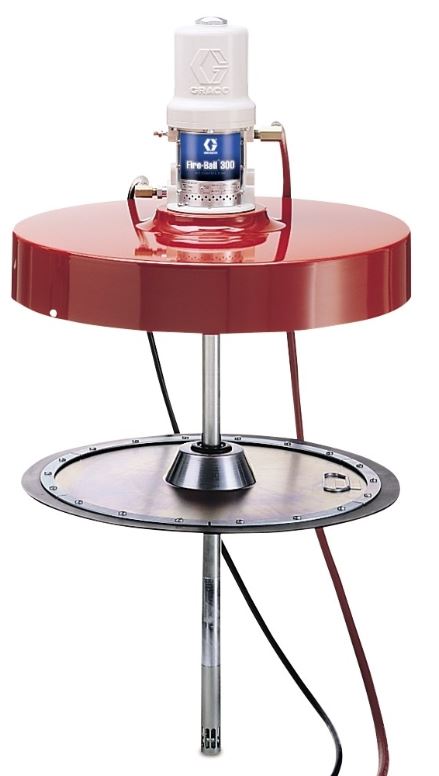

GRACO 225016 GREASE PUMP KIT #400 (55GAL) DRUM

AIR INLET: 3/8" FNPT
GREASE OUTLET: 1/4" FNPT
PUMP RATIO: 50:1
DRUM SIZE: #400 (55GAL)


INCLUDES:
PUMP: #239887
FOLLOWER: #24F902
LID: #24R350

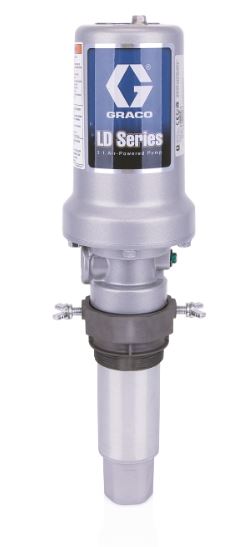

GRACO 24G576 LD Series 3:1 Universal Oil Pump with Bung Adapter - NPT

The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.

Three Inch Air Motor - Provides more power to create better flow.
Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.

GRACO FIREBALL 300 GREASE PUMP #400 DRUM

AIR INLET: 3/8" FNPT
GREASE OUTLET: 1/4" FNPT
PUMP RATIO: 50:1
DRUM SIZE: #400 (55GAL)
PUMP ONLY

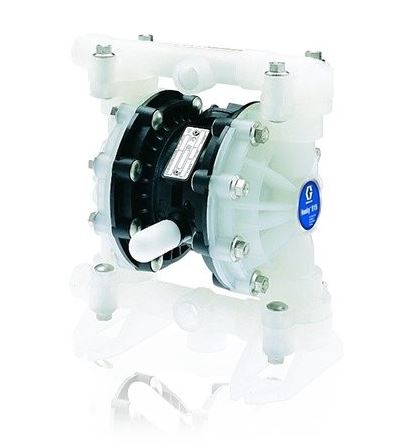

GRACO HUSKY 515 CHEMICAL DIAPHRAGM PUMP 1/2"

AIR INLET: 1/4" FNPT
AIR EXHAUST: 3/8" FNPT
FLUID INLET: 1/2" FNPT
FLUID OUTLET: 1/2" FNPT CENTER / 3/4" FNPT SIDE
FLUID INLET: 1/2" FNPT CENTER / 3/4" FNPT SIDE
MAXIMUM FLOW RATE (GPM): 15

BALL MATERIAL: PTFE
CENTER SECTION MATERIAL: Polypropylene
DIAPHRAGM MATERIAL: PTFE/EPDM 2-Piece

COMPATIBLE MATERIAL: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

GRACO HUSKY 716 DIAPHRAGM PUMP 3/4"

AIR INLET SIZE: 1/4" FNPT
AIR EXHAUST PORT: 3/8" FNPT
FLUID INLET: 3/4" FNPT
FLUID OUTLET: 3/4" FNPT

MAXIMUM FLOW RATE (GPM): 16
MATERIAL: Aluminum
BALL MATERIAL: Buna-N
COMPATIBLE MATERIAL: Oil, Water, Antifreeze, Windshield Washer Fluid
DIAPHRAGM MATERIAL: Buna-N

GRACO 647016 1050 1" DIAPHRAGM PUMP

AIR INLET: 1/2" FNPT
AIR EXHAUST PORT: 3/4" FNPT
FLUID INLET: 1" FNPT
FLUID OUTLET: 1" FNPT
MAXIMUM FLOW RATE (GPM): 50
MAXIMUM FLUID PRESSURE (PSI): 100
MAXIMUM AIR CONSUMPTION (SCFM): 25
MAXIMUM AIR PRESSURE (PSI): 100


BALL MATERIAL: Acetal
CENTER SECTION MATERIAL: Aluminum
COMPATIBLE MATERIAL: Water, Antifreeze, Fuel
DIAPHRAGM MATERIAL: TPE (Hytrel)
SEAT MATERIAL: TPE (Hytrel)

GRACO 2150 AL DIAPHRAGM PUMP 2"

AIR INLET: 1/2" FNPT
FLUID INLET: 2" FNPT
FLUID OUTLET: 2" FNPT
MAXIMUM FLOW RATE (GPM): 150
MAXIMUM FLUID PRESSURE (PSI): 120

BALL MATERIAL: Acetal
DIAPHRAGM MATERIAL: TPE (Hytrel)
FLUID SECTION MATERIAL: Aluminum
MAXIMUM AIR CONSUMPTION (SCFM): 175
MAXIMUM AIR PRESSURE (PSI): 120

COMPATIBLE MATERIAL: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer

GRACO OIL BASIC PUMP PACKAGE

INCLUDES
GRACO 24G576 3:1 OIL PUMP
GRACO HEM004 1/2" X 50FT OIL REEL WITH HOSE
GRACO 24V037 METERED OIL CONTROL HANDLE

Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, In-plant, Lube trucks, and Mining.
