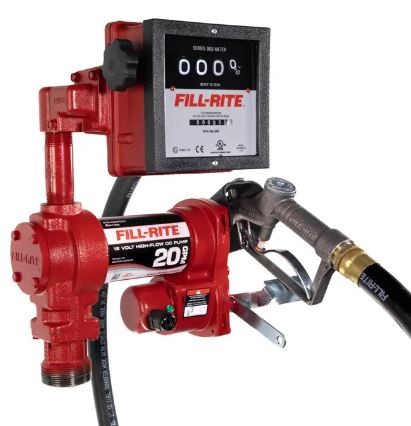

FILL RITE FR4211 12V 4210 WITH METER KIT 20GPM

Product ID: FR4211D

MFG: FILL-RITE
MFG Part Number: FR4211

Selected accessories will also be added to cart
Meter 901C Mechanical Meter (Gallons)
Discharge Hose 1” X 12’ Hose with Static Ground Wire
Nozzle 1” Cast Aluminum Manual Nozzle
Ground Wire Yes
Cable Length (ft.) 18
Cable Gauge 12
Cable Connection Bare Leads
Flowrate Range 0 - 20 GPM
Inlet / Outlet Thread Size (in.) 1 " / 1 "
Mounting Size / Thread / Type 2" / NPT / Electric
Duty Cycle 30 min on / 30 min off
Motor Power 0.25
Power Type DC
Suction Lift (ft.) 8 '
Dry Vacuum (in. Hg) 5
Max Discharge Pressure 16 PSI
Discharge Head (ft.) 37 '
Max Operating Pressure (PSI) 16
Strainer Mesh Size (micron) 20x20
Accuracy (+/- %) 2 %
Repeatability (+/- %) 0.38 %
Display Digits 4
Viscosity Range (cSt) 1 to 4
