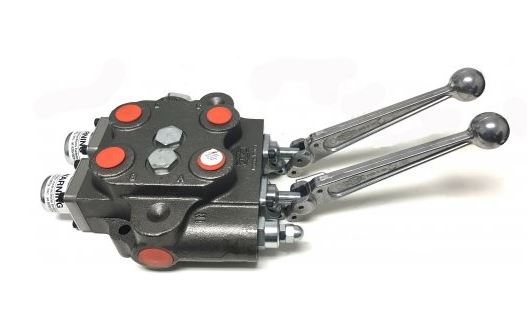

CROSS SPOOL VALVE 2 SPOOL
Enlarge Photo

CROSS SPOOL VALVE 2 SPOOL

Product ID: SBA22

MFG: CROSS MANUFACTURING
MFG Part Number: SBA22

Selected accessories will also be added to cart
2500 psi operating pressure for SBA
3000 psi operating pressure
30 GPM flow rate
SBA: 3/4” NPTF in and out, 1/2” NPTF work ports
Adjustable built-in relief set at 2000 psi
Spring centered, open and closed center available
Built-in load checks for lifting
The Cross SBA series hydraulic control valve is a 3-position, 4-way valve in 1,2 or 3 spool versions with float available. The SBA series features NPTF ports and the SBA-ORB has SAE (ORB) ports. The SBS series has 12-volt solenoid (3-position, 4-way). Fully balanced select-fit honed spools with excellent metering characteristics give maximum load holding capability and long life.
