/PRODUCTS/LUBRICATION EQUIPMENT/ALEMITE/ALEMITE 7316-F LOW PRESURE COMPACT BARE REEL
Click Image to Expand

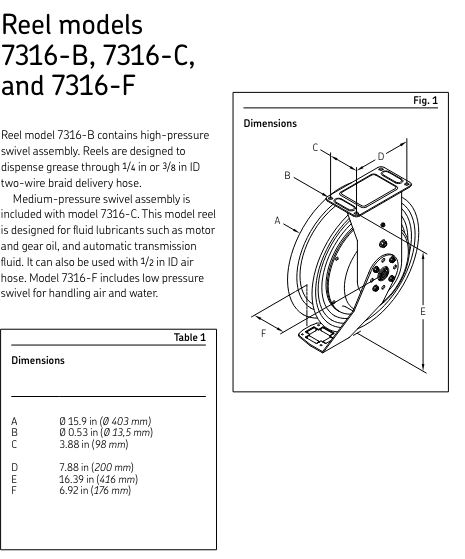

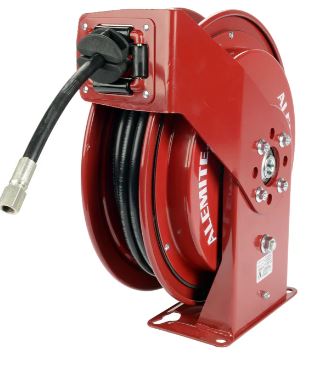

ALEMITE 7316-F LOW PRESURE COMPACT BARE REEL

Product ID: 7316-F

MFG: ALEMITE
MFG Part Number: 7316-F

Selected accessories will also be added to cart

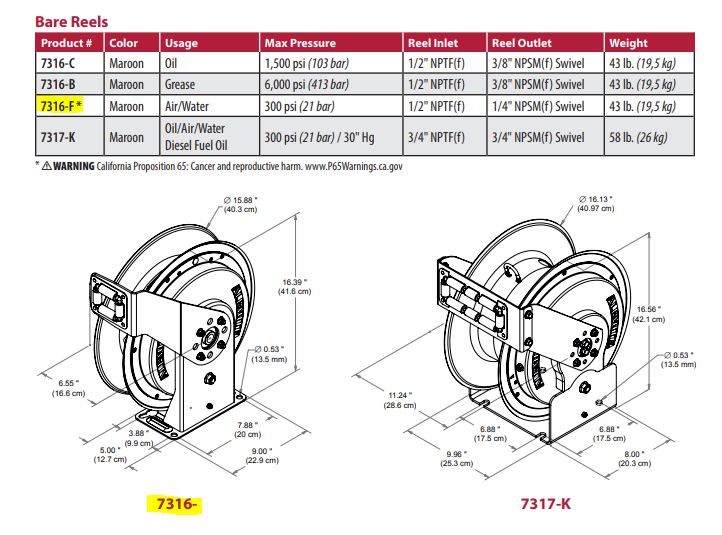

ALEMITE 7316-F LOW PRESSURE HEAVY DUTY COMPACT REEL

BARE HOSE REEL (NO HOSE INCLUDED)

CAPACITY 1/2" X 50FT OR 3/8" X 50FT
MAX PRESSURE 300PSI
OUTLET THREAD 1/2" FNPT
INLET THREAD 1/2" FNPTS
Saves space; fits in cabinets with 16.5” depth

Superior Performance – Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time

Anti-Lockout Design – Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel

Corrosion Resistant – Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments

Easy Installation and Maintenance – Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy

Durable – Heavy metal arbor design withstands extreme stress and eliminates breakage associated with non-metal and light weight metal arbors

Adjustable and Versatile – 5 position guide arm allows hose to release at an optimum position. Narrow design allows for efficient use of available space
