BALCRANK 1160-008 - 1:1 Bare stainless steel drum pump with bung adapter. Coolant and DEF 55gal Drum Pump

PUMP SPECS

Pump ratio: 1:1

Operating air pressure range 45 – 150 PSI (3– 0 bar)

Pump delivery with SAE 10W-30 oil, 68º F, at 150 PSI (10 bar)
air pressure and free flow 10.6 gal/m (40 l/m)

Air inlet 1/4" NPT (F)

Pump outlet 3/4" NPT (M)

Pump air piston diameter 1 3/8” (35 mm)

Wetted materials Stainless Steel, Viton, and PTFE

Fluids
• Synthetic and mineral based lubricants
• Hydraulic fluid
• Transmission fluid
• Anti-freeze/windshield wash fluids (stainless steel version 1160-008)

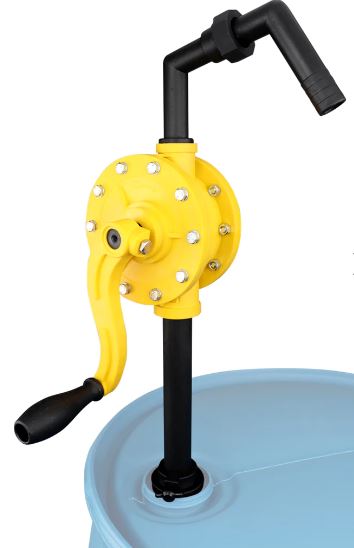

ROTARY HAND PUMP

Specifications:

?Lightweight and corrosion resistant
1" hose barb spout
3/4" BSP outlet
1" BSP inlet
1 1/4" O.D. pickup tube
Typically Used With: DEF, petroleum products, water-based chemicals, and chlorinated solvents. Please consult our Chemical Resistance Chart for specific compatibility concerns.

The PIUSI Rotary Hand Pump is a stainless steel-reinforced rotary vane hand pump with for transfer of DEF, water and antifreeze.

PIUSI Hand Pump TOTE is a hand pump for transferring DEF, water and antifreeze liquid.

DEF TOTE PACAKGE 110V COMPLETE

COMPLETE PACKAGE FOR A 330 TOTE

INCLUDES
110V DEF PUMP
SS AUTO SHUT-OFF NOZZLE
3/4" X 15FT DISCHARGE HOSE
3/4" X 3FT SUCTION HOSE WITH CLAMPS
TANK RSV CHECK VALVE
TANK PDC COUPLER
TOTE BRACKET WITH NOZZLE HOLDER

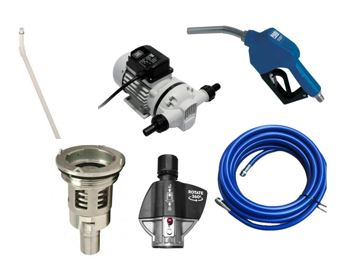

DEF TOTE PACAKGE 12V COMPLETE

COMPLETE PACKAGE FOR A 330 TOTE

INCLUDES
12V DEF PUMP
SS AUTO SHUT-OFF NOZZLE
3/4" X 15FT DISCHARGE HOSE
3/4" X 3FT SUCTION HOSE WITH CLAMPS
TANK RSV CHECK VALVE
TANK PDC COUPLER
TOTE BRACKET WITH NOZZLE HOLDER

PIUSI F0020310H 120V DEF PUMP 9.5 GPM

Suzzarablue Pump AC is the most popular DEF transfer diaphragm pump worldwide, equipped with an electric motor without dynamic seals. This solution makes this pump ideal for industrial use.

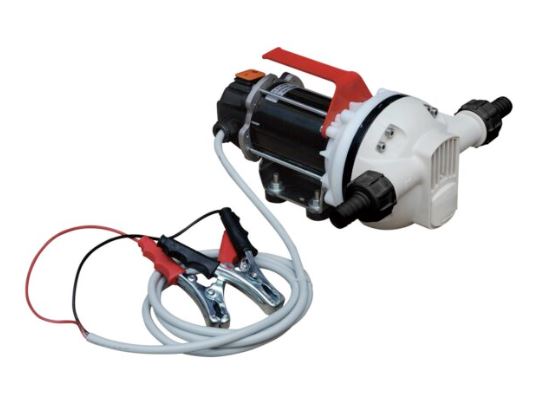

PIUSI F00204080 12V DEF PUMP 9.5 GPM

The DEF Suzzarablue Pump DC is complete with:
Hose connector 3/4"
ON/OFF switch
6.5 ft. cable with pliers

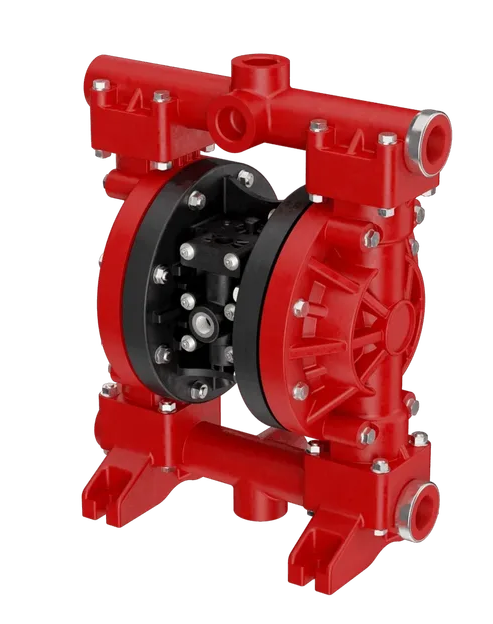

PIUSI F00808P10 AIR DIAPHRAGM DEF PUMP

Piusi Pro One 15 MP Reliable. Compact. Built for Performance.

SPECS
• Flow Rate: 14 GAL GPM
• Max suction height: 23 ft
• Air Operating Pressure: 115 PSI
• Inlet/Outlet: 1/2" NPT
